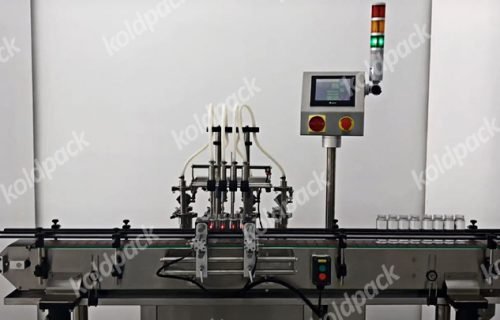

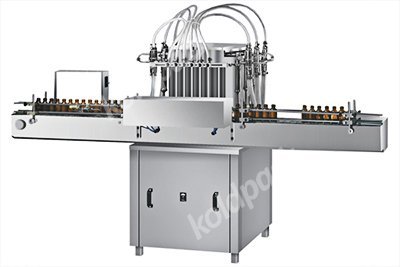

The
KOLDPACK Automatic Volumetric Liquid Bottle Filling Machine operates
on the volumetric principle with precision diving nozzles. This
compact and versatile unit is enclosed in an elegantly finished
stainless steel body. It features a robust S.S. Slat Conveyor,
reciprocating nozzles with self-centering devices, and stainless
steel syringes. A standard feature of the machine is the "no
container, no filling" system, which ensures efficiency and reduces
waste. The main drive and conveyor drive are powered by an AC motor
with a synchronized variable AC frequency drive for seamless
operation.
Salient Features
- ± 1 % Filling accuracy on single dose.
- No Bottle No Filling System.
- Sturdy, vibration-free construction ensures reliable performance.
- Stainless steel body with an elegant matte finish for a professional appearance.
- User-friendly control panel for complete operational control.
- Minimal changeover time between different container sizes or fill volumes.
- Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and noiseless conveying.
- Integrated drip tray beneath the conveyor for cleanliness.
- Pneumatic bottle stopping system for precise operation.
- Synchronized dual AC drives for both the main motor and conveyor belt.
- Safety guard for conveyor gearbox, motor and pneumatic cylinders.
- MCB for over load protection, and prevention against short circuits.
- Inbuilt protection against over current, voltage fluctuation, short circuit in A/c frequency drive.
Technical Specifications
| Model | KL2H/AV | KL4H/AV | KL6H/AV | KL8H/AV |
|---|---|---|---|---|
| Number Of Filling Head | 2 | 4 | 6 | 8 |
| Capacity in Bottles Per Hour @ 1000 ml | 2400 BPH | 3600 BPH | 5400 BPH | 7200 BPH |
| Compressed Air Consumption @4 to 6 Bar | 0.5 CFM | 0.5 CFM | 0.5 CFM | 1 CFM |
| Electric Power | 1.5 KW | 1.5 KW | 2 KW | 2 KW |
| Bottle Filling Range | 50 ml to 1000 ml | |||
| Application | Household, cosmetics, pharma products, syrup, oil, chemicals, foamy & viscous product. | |||
Operation

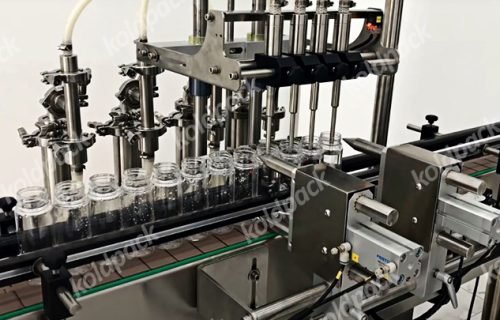

After
manual loading of containers on rotary Unscrambler the containers
moving on SS Slat conveyor, feed below the filling nozzles through a
settable twin pneumatically operated stopper system. The twin
pneumatically operated stopper system and reciprocating nozzles can
precisely match for centering of container below nozzles, to avoid
spillage of liquid on container.

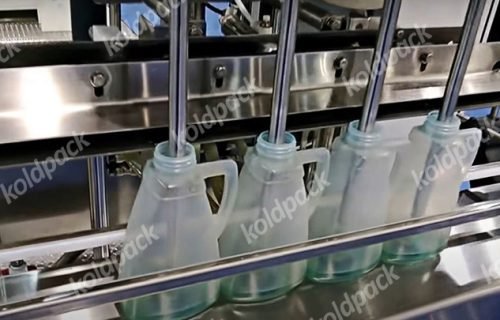

To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.
To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.
