Introducing

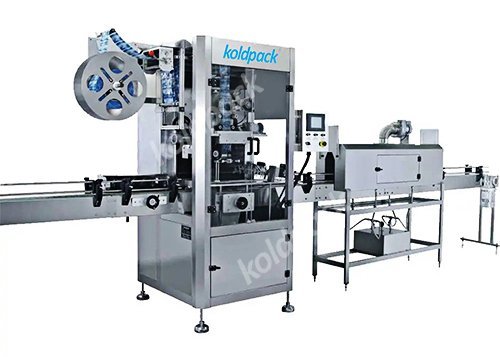

the Koldpack Sleeve Applicator, a versatile machine designed for
high-performance labelling. This multi-functional system is capable
of applying sleeves in roll form, whether it's a full-body sleeve or
a precisely positioned label on the bottle, thanks to its innovative
attachment. The servo/stepper-based label feed and cutting system
ensures exceptional speed, accuracy, and
repeatability.
The integrated steam tunnel follows the sleeve applicator, delivering flawless label shrinkage that conforms perfectly to the bottle's shape without creases. With precise, economically controlled steam valves or an optional hot air system where steam is unavailable, the machine guarantees top-notch results.
Built with safety in mind, the machine features a sleek stainless steel matte finish frame, complete with interlocking door safeties. Its interactive intelligence is showcased through a large TFT color touch screen, offering real-time alerts and troubleshooting guidance for seamless operation.
The integrated steam tunnel follows the sleeve applicator, delivering flawless label shrinkage that conforms perfectly to the bottle's shape without creases. With precise, economically controlled steam valves or an optional hot air system where steam is unavailable, the machine guarantees top-notch results.
Built with safety in mind, the machine features a sleek stainless steel matte finish frame, complete with interlocking door safeties. Its interactive intelligence is showcased through a large TFT color touch screen, offering real-time alerts and troubleshooting guidance for seamless operation.
Salient Features
- Prevents labels from being applied when no container is present, reducing waste.
- Provides precise and consistent label application using advanced servo technology.
- Ensures accurate and high-speed cutting of labels for a clean finish.
- Cuts labels based on sensor I-Mark detection or adjustable length settings.
- Delivers reliable, seamless performance throughout the labelling process.
- Offers intuitive control and real-time monitoring for easy operation.
- Coordinates all components for optimal efficiency and performance.
- Features a plastic slat chain conveyor with adjustable speed for versatile handling.
- Provides accurate tracking of production counts for improved efficiency.
- Allows precise control of operational speed for enhanced flexibility.
- Utilizes high-quality electrical components and motors for long-term reliability.
- Works with both online steam tunnels and electric heating tunnels.
- Suitable for Glass, PET, HDPE bottle
Technical Specifications
| Capacity Output | 100/ 150/ 200 BPM (Depends on Sleeve Length & bottle size) |
| No of head | single or double head for neck & body shrink |
| Container type | Pet, glass, HDPE, plastic CUP etc. |
| Sleeve Size * | 50-200 mm (L) x 50-150mm (W) x Min. 40 Micron Thick |
| Control by | PLC controlled with HMI panel |
| Direction | Left to Right. |
| Label Dispensing | Servo Controlled |
| Power supply | 2KW 1- Phase 230 V AC |
Operation

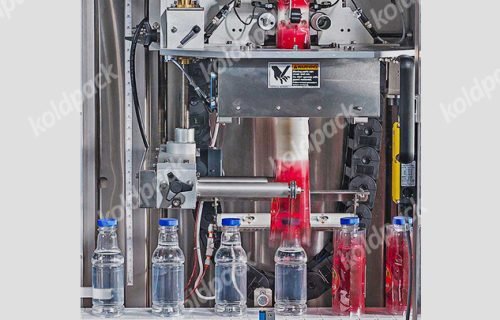

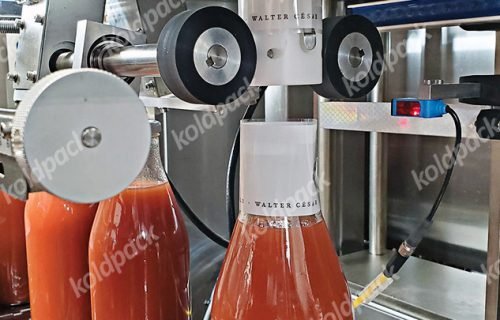

The sleeve
labelling machine is a fully automatic, multifunctional system
directly linked to the filling line conveyor. It detects bottles and
spaces them evenly using the guide roll before applying labels with
the center applicator. A servo motor cuts the label to the desired
length, which is then applied using a rotating brush. The process
concludes with a steam tunnel that precisely shrinks the label to
fit the bottle’s shape without creases.
