Collapsible Liquid Container
Cubitainer / Politainer Packaging Solution
We serve wide range of packaging solutions for turnkey based projects on Cubitiner / Politainer.
Industries We Serve
We manage your foaming, viscous, fluid, aggressive or flammable products…We develop equipment to answer your needs in detergents, solvents, polymers, disinfectants, cleaning products…
We manage your foaming, viscous, fluid, aggressive or flammable products…We develop equipment to answer your needs in fertilizer, pesticides, herbicides, fungicides, insecticides etc. various other products…
We
manage your foaming, viscous,
fluid, aggressive or flammable
products…We develop equipment to
answer your needs in
lubricants, windscreens,
coolants…
We manage your virgin oils, your refined oils (5L – 20L)…
We manage your sauces, vinaigrettes, mayonnaise, syrups…
Machine
compatible with range of cubitainer/Politainer
(shape and size)
| Filling Capacity | Opening size (mm) | Cubitainer/Politainer size (mm) | Semi-Automatic Single Head Cubitainer Filling Machine Model:Semi E-fill-1H | Semi-Automatic Single Head Cubitainer Filling Machine Model:Semi E-fill-2H | Semi-Automatic Single Head Cubitainer Filling Machine Model:Cubi-fill-8H-4H |
|---|---|---|---|---|---|
| 5L | 32 | 190×190×190 | 60/ hr. | 100/ hr. | 400/ hr. |
| 10L | 32 | 250×250×230 | 50/ hr. | 80/ hr. | 400/ hr. |
| 18L | 32 | 295×295×295 | 40/ hr. | 70/ hr. | 380/ hr. |
| 45 | |||||
| 20L | 32 | 300×300×300 | 40/ hr. | 70/ hr. | 360/ hr. |
| 45 |
Exclusive Service
Cubitainer selection

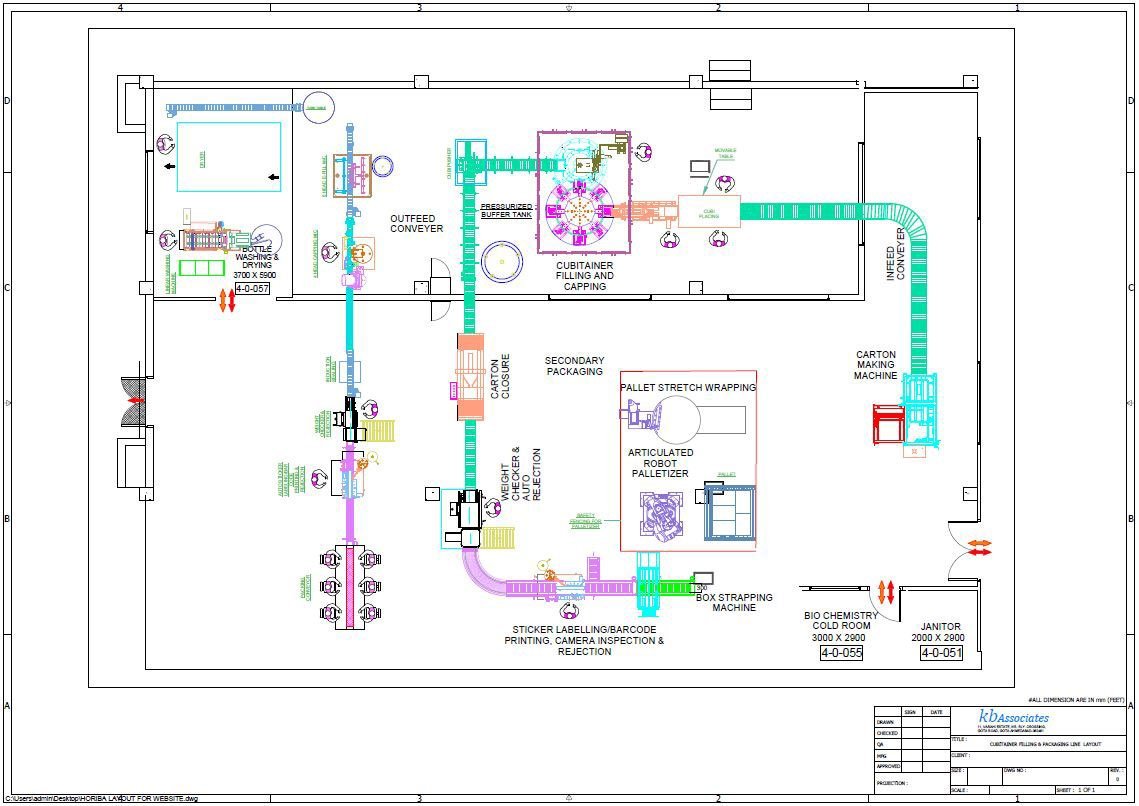

Factory layout & machine arrangement
End to end solution on turnkey basis
Technical support
AMC maintenance & service

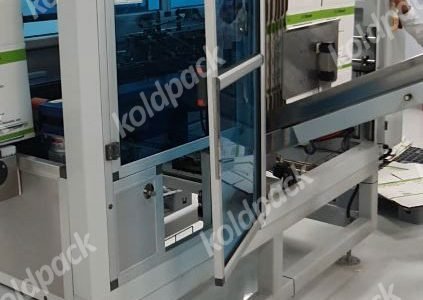

Box opening & sealing machine

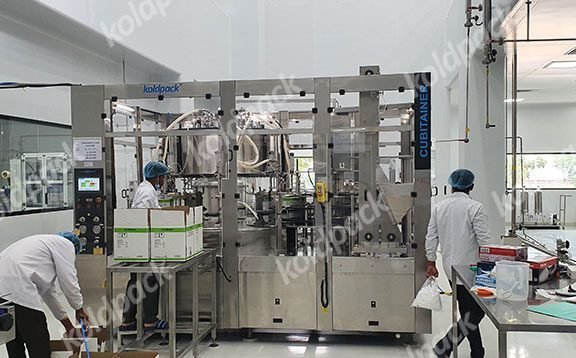

Cubitainer filling & capping machine
- Filling liquid supply by pressurized tank with Consistent product flow rate even with viscosity variations.
- Electromagnetic Flow meter based filling system with specialized end shut off zero dripping nozzles which gradually fills cubitainer bag from bottom.
- Also available with nitrogen purging to prevent product contamination.
- Servo based capping system with torque measurement & control for uninterrupted production.
- Fully automatic 2 tanks clean in place system with customized cleaning programs.
- Filling liquid supply by pressurized tank with Consistent product flow rate even with viscosity variations.
- Electromagnetic Flow meter based filling system with specialized end shut off zero dripping nozzles which gradually fills cubitainer bag from bottom.
- Also available with nitrogen purging to prevent product contamination.
- Servo based capping system with torque measurement & control for uninterrupted production.
- Fully automatic 2 tanks clean in place system with customized cleaning programs.

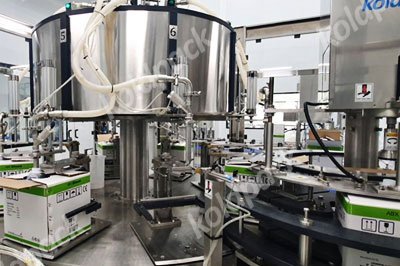

Cubitainer filling & capping machine

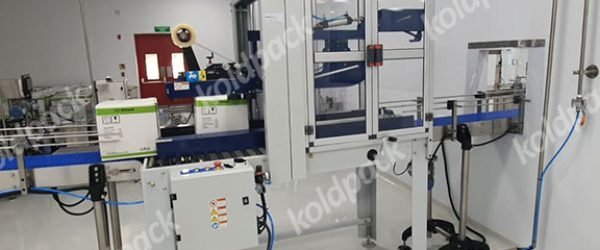

Box closing & sealing machine

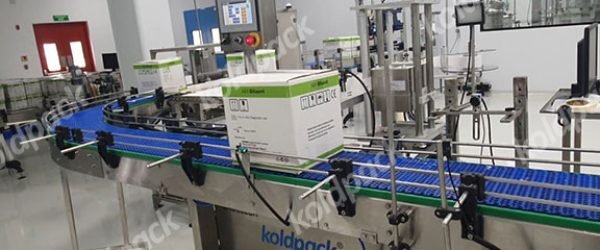

Sticker Labelling machine with camera inspection & automatic rejection
After labelling smart camera inspection system monitors the Barcode / QR code & if found incorrect the box will be rejected & reused.
After labelling smart camera inspection system monitors the Barcode / QR code & if found incorrect the box will be rejected & reused.
Sticker Labelling machine with camera inspection & automatic rejection

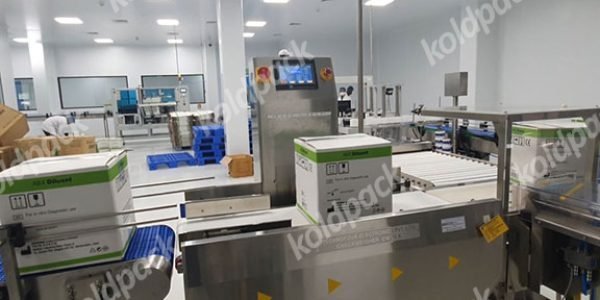

Box Weight checker & automatic rejection
The check weight systems are based on the HMI and ARM technique and hence offer very precise settings and operations.

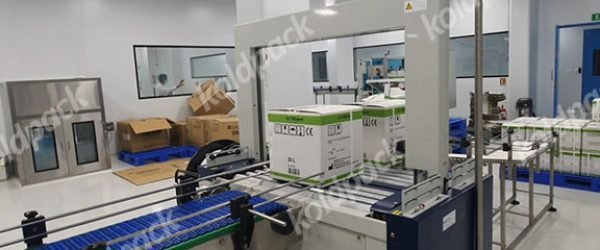

Box Strapping machine
Box Strapping machine
