Koldpack

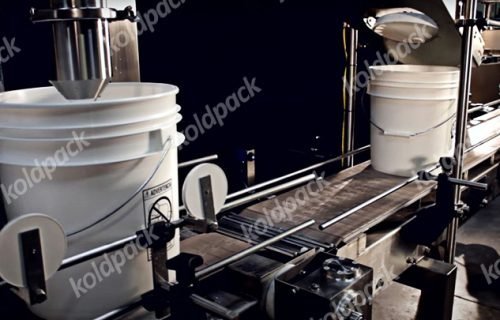

automatic new weight filling machine is working on the principle of
load call based weight filling suitable to fill liquid products in

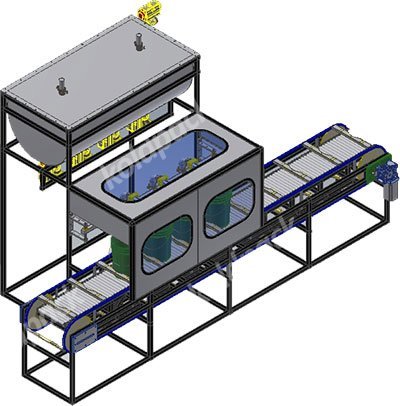

10L buckets, 20L buckets & pails. The machine consists of
inbuilt buffer tank with liquid level controller on ground level or
up level for gravity based filling. Servo based chain conveyer
system adjust the buckets in perfect position before starting the
filling. This machine comes with an automatic lid pressing device to
make it more flexible. Examples of this type of filler for bulk
products include all types of chemicals, lubricants, industrial
solvent, paints, food products etc. High value products filled by
these machines include specialty adhesives and paints, precious
metals dissolved in acids, and other expensive specialty
chemicals.
Salient Features
- Servo based conveyor rollers system with intermediate bucket stations.

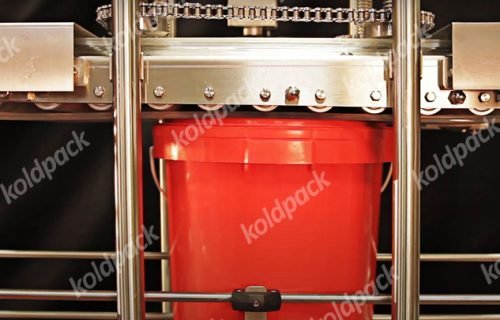

- Available with automatic roller closure/ pneumatic plate closure type lid pressing system.
- PLC based control with large HMI touch screen panel.
- Can handle a wide variety of filling ranges & container sizes.
- Inbuilt filling tank with agitator for mixing.
- Calibrated filling with auto tare start.

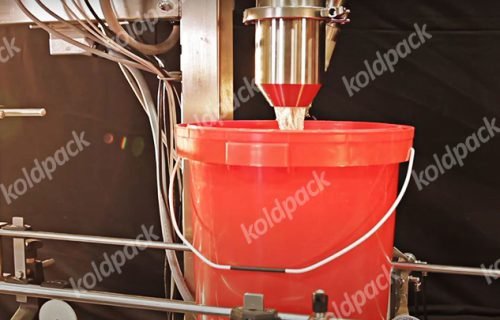

- Outside openable nozzle with double seat to ensure maximum flow rate & accurate filling.
- Course & fine filling facility for foamy product.
- Acrylic doors with safety locks provided.
- Can be compatible with flammable, hazardous, toxic chemicals which need to fill at high temperatures.
- Unlimited filling recipe generation & storage as per requirement.
- Specialized high temperature food grade silicone seals with tri-clamp based connection for each cleaning.
- All the parts including the main valve, buffer tank, nozzles, Hose pipe, & pump are connected by tri-clamp for easy disassembling during the cleaning process.
- Automatic Cap lidding, Crimping & closing system is added in fully automatic pails filling process.
- Can be compatible with online ink jet printer & palletizer.
Technical Specifications
| No. Of Filling Head | 2 to 6 heads |
| Output Per Hour | 200 to 600 buckets/Hr. |
| Filling Type | Weight based electronic load cell type |
| Nozzle System | Top filling- Bottom Filling |
| Material Of construction | Contact parts : SS 316, Body Parts : SS 304Matt finish |
| Electrical Supply | AC 440V Three Phase |
| Compressed Air pressure | 4 to 6 Kg/ Cm2 |
| Filling Range | 1 Liter to 5 Liter with necessary change parts |
| Application | Filling of foamy and non-foamy liquids in bottles & containers. |
Operation
Koldpack
automatic new weight filling machine is working on the principle of
load call based weight filling suitable to fill liquid products in
10L buckets, 20L buckets & pails. The machine consists of
inbuilt buffer tank with liquid level controller on ground level or
up level for gravity based filling. Servo based chain conveyer
system adjust the buckets in perfect position before starting the
filling. This machine comes with automatic lid pressing device to
make it more flexible. Examples of this type of filler for bulk
products include all types of chemicals, lubricants, industrial
solvent, paints, food products etc. High value products filled by
these machines include specialty adhesives and paints, precious
metals dissolved in acids, and other expensive specialty
chemicals.
